Better Price Stainless Steel Aluminum Cable Ladder Support Systems
Product Description

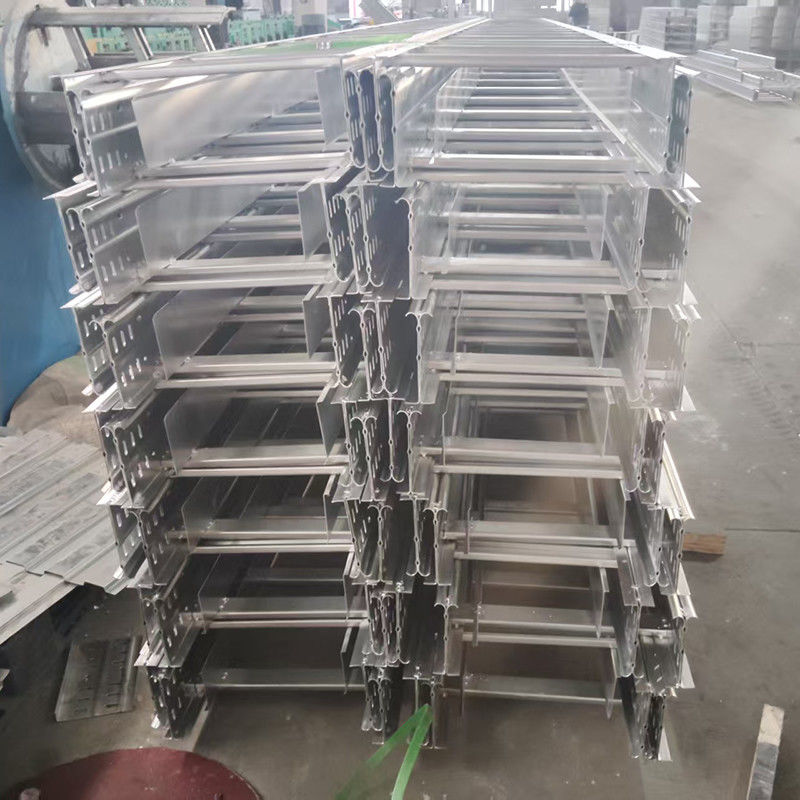

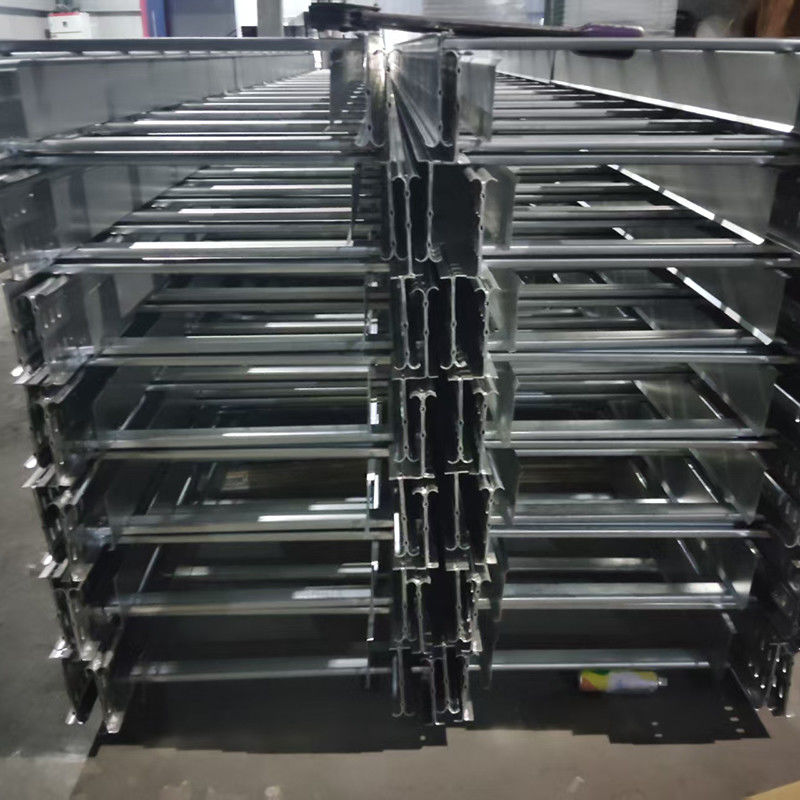

Ladder cable tray is a common type of cable tray. Its structural shape is similar to a ladder, consisting of parallel long side beams on both sides and crossbeams connected across, forming a series of horizontal channels for supporting and protecting cables.
Ladder cable trays are usually made of metal materials such as steel, aluminum, etc., which have high load-bearing capacity and strength. Primarily used in industrial environments, marine engineering, infrastructure projects, and heavy industrial zones.
Features
1. Cable Ladder is strong enough to with stand short circuits. Provides strength, rigidity without additional hardware.
2. Cable ladder can adapt to difficult architectural designs to accommodate changes in direction and elevation of cable runs.
3. The ladder type cable tray has excellent load-bearing capacity and can be reinforced with double ladder edges and reinforcing ribs. Make it suitable for laying cables with larger diameters and weights.
4. Excellent heat dissipation, which can effectively dissipate heat and avoid cable overheating. Suitable for use in situations where cables generate high heat. Such as scenarios with a large number of power cables or power cables.
Technical Parameters
|
Product type
|
Ladder Cable Tray
|
|
Material
|
Hot-dip galvanized /stainless steel/ fireproof spray /aluminum alloy
|
|
Surface Treatment
|
Pre-Gal/Electro-Gal/Hot dipped galvanized/Powder coated/Polishing
|
|
Size
|
Width
|
50-1200mm
|
|
Side rail height
|
50-300mm
|
|
Length
|
2m-6m
|
|
Thickness
|
0.8-3.0mm
|
|
Bussiness type
|
Trade and manufacturer
|
|
Accessories
|
Elbow ,tee, cross,reducer
|
|
Used
|
Wiring system,cable management,hoisting system,construction industry and so on
|
|
Non standard specifications are availabe according to customers' requirement
|
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shippment.
