Open Structure Steel Cable Tray Ladder-Type Wire Mesh for Industrial Use High-Efficiency Heat Dissipation Convenient Cabling
Product Description

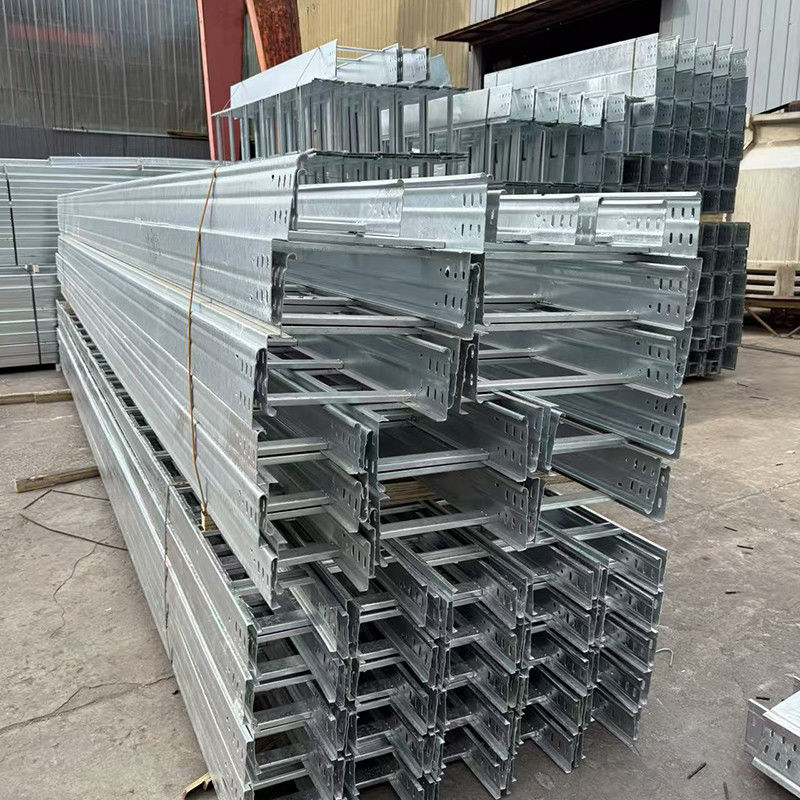

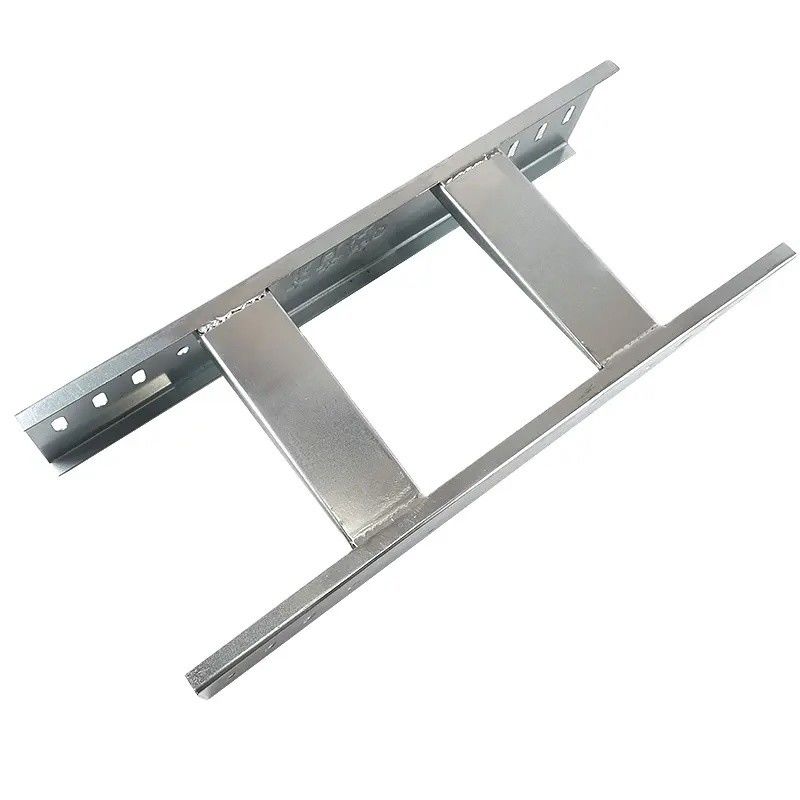

Ladder cable tray is a common type of cable tray. Its structural shape is similar to a ladder, consisting of parallel long side beams on both sides and crossbeams connected across, forming a series of horizontal channels for supporting and protecting cables.
Ladder cable trays are usually made of metal materials such as steel, aluminum, etc., which have high load-bearing capacity and strength. It is suitable for cable routing inside buildings and can be used for horizontal, vertical, and diagonal cable laying.
Features
1. The ladder type cable tray has excellent load-bearing capacity and can be reinforced with double ladder edges and reinforcing ribs. Make it suitable for laying cables with larger diameters and weights.
2. Wide Range of Applications: The 100mm cable tray is suitable for various industries, including construction, industrial, and commercial settings. Its versatility makes it an ideal solution for managing cables and wires in a wide range of applications.
3. The ladder bridge adopts an open design, which makes the installation and modification of ladder bridge cables more flexible and convenient. In situations where frequent adjustments or additions of cables are required; Such as some production lines and technology parks.
4. Customization Options: As a manufacturer, we offer customization services to meet individual customer requirements. Whether it's a specific size, material, or design, our team will work closely with you to create a cable tray that fits your unique needs.
Technical Parameters
|
Product type
|
Ladder Cable Tray
|
|
Material
|
Hot-dip galvanized /stainless steel/ fireproof spray /aluminum alloy
|
|
Surface Treatment
|
Pre-Gal/Electro-Gal/Hot dipped galvanized/Powder coated/Polishing
|
|
Size
|
Width
|
50-1200mm
|
|
Side rail height
|
50-300mm
|
|
Length
|
2m-6m
|
|
Thickness
|
0.8-3.0mm
|
|
Sample
|
Supplied Freely
|
|
OEM ODM
|
As Per Customer Request
|
|
Used
|
Wiring system,cable management,hoisting system,construction industry and so on
|
|
Non standard specifications are availabe according to customers' requirement
|
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shippment.
